Bailey Bridge Pin

The Bailey bridge is mainly composed of components such as truss units, cross-beams, and longitudinal beams. Truss pins can connect each truss unit to form the main truss structure of the Bailey bridge

WhatsApp:

Share to

  • 产品描述
  • Bailey Bridge Pin

    Product description:

    Metal Bailey Bridge Pin

    1. Overall Dimensions:Ф55×200  Ф50×200

    2. Heat Treatment Hardness Grade:  HRC28 - 34

    3. Material:   40Cr or 45# steel

    4. Color:  Silver Black

    5. Anti-rust Grade:  Electro-galvanized for corrosion protection or black oxide coating

    6. Purpose:  The connection of 321 steel bridges, 100-type and 200-type steel bridge trusses

    7. Usage:  Used in combination with special safety pins

    Product Details:

    The truss pin is a key component specifically used for connecting truss structures. It aims to ensure stability and reliability.

    Splicing among the various components of the truss, and guarantee that the entire truss system can function safely and effectively under different working conditions.

    Product Usage:

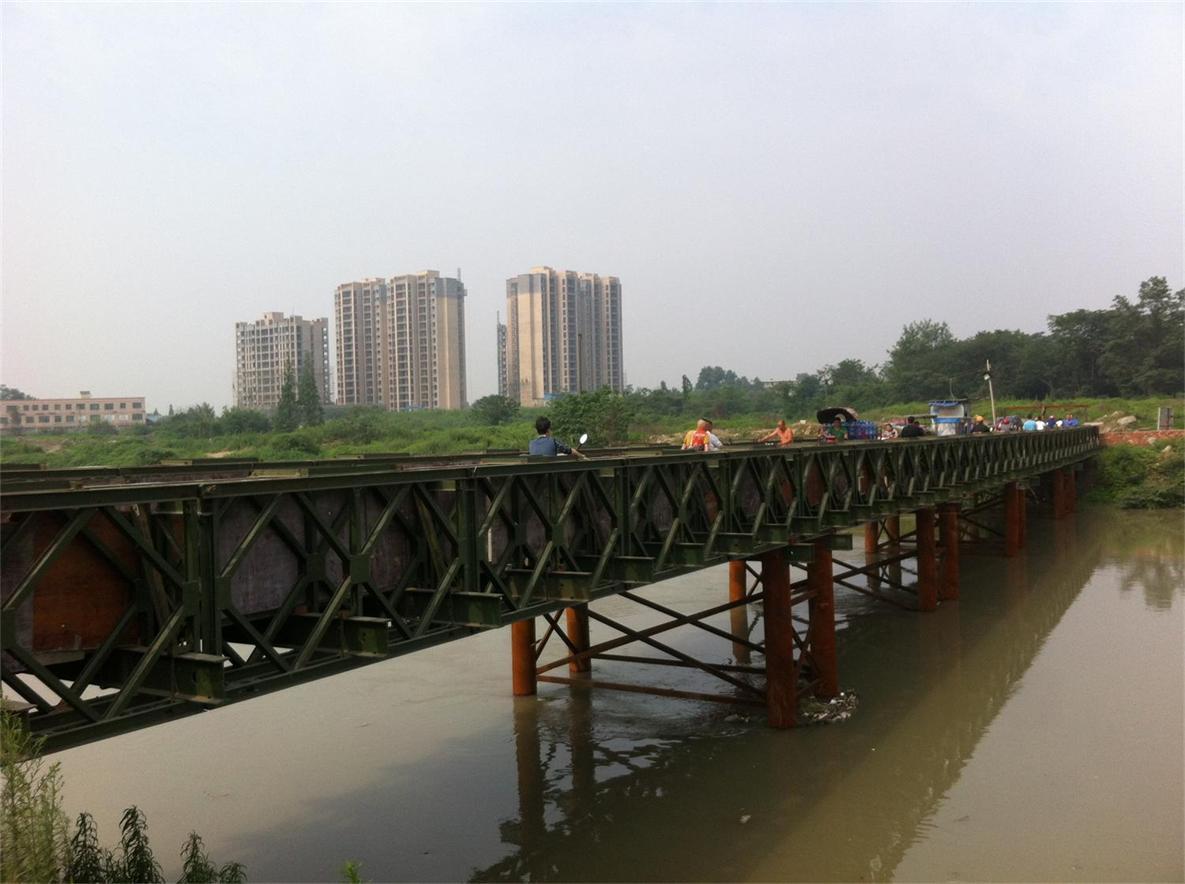

    The Bailey bridge is mainly composed of components such as truss units, cross-beams, and longitudinal beams. Truss pins can connect each truss unit to form the main truss structure of the Bailey bridge.
