1500*3000/1500*2000/1500*1500/1500*1000 series Bailey pannel
Main Components
1. Pin & Cotter Pin: Made of high-strength alloy steel for connecting panels 2. 321 Type Panel: Standard size: 3m×1.5m, universal core component
3. 200 Type Panel: Standard size: 2m×1.5m, suitable for flexible layouts. 4. Reinforced Panel: Same size as 321 type with enhanced load capacity
Connection System
1. Transom Beam: I-beam, installed at the bottom nodes to support the deck. 2. Transom Clamp: Used to secure the transom beam to the lower chord. 3. Bracing & Sway Frame: Includes horizontal and vertical bracing for stability.
Deck System
Stringer: Mounted on transoms to support decking panels.
Supports
1. Bearing & Launching Nose: Includes rocker, base plate, etc., for end support. 2. Sway Bracing: Reinforces the lateral stability of the bridge. 3. High-Strength Bolt: For connecting various support components.
Specifications
1. Panel Bridge
2. Factory provided directly
3. Manual handling
4. Quickly install. It is the main bearing of the structure steel bridge

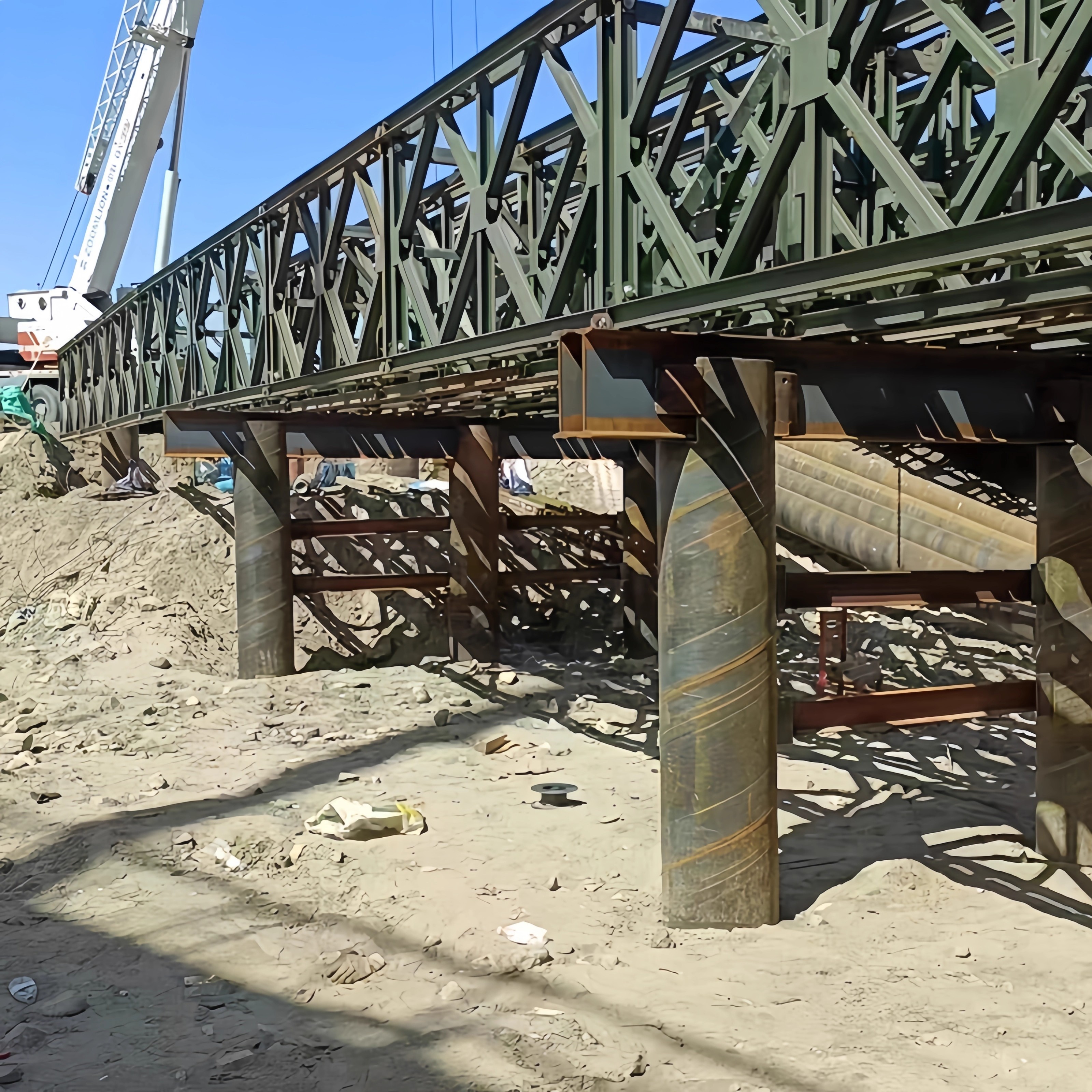

200 Series Bailey Bridge The "200" series Bailey steel bridges increase truss height, load-carrying capacity, fatigue life and enhance stability performance, ultimately improving reliability. Compared with the 321 steel bridge, under the same combination type conditions, the strength is increased by 33% and the stiffness is increased by 2.3 times.
It is composed of an upper, lower chord, vertical bars, and diagonal rods welded together. The end of the bottom chord of and Yang joint, joint is connected with a truss pin hole. Truss chord is composed of two 10 channel (back to back) and, in the lower chord, a plurality of perforated steel plate welding, bolt holes and the reinforcing chord and double truss connected on, bottom chord, the chord is used to connect the frame four bolt holes the two hole, which is for the double row or more truss with internode connection, by two holes at both ends of the cross section is connected with the. Multiple rows of truss as beams or columns, when in use, must be engaged with a supporting frame of the upper and lower sections of the truss reinforcement. In the lower chord rod, is provided with 4 beam plates are provided, a tenon above, used for fixing the beam in the plane of the position: in the lower chord rod end, of steel web is provided with two elliptical holes for connecting the wind pull rod.
